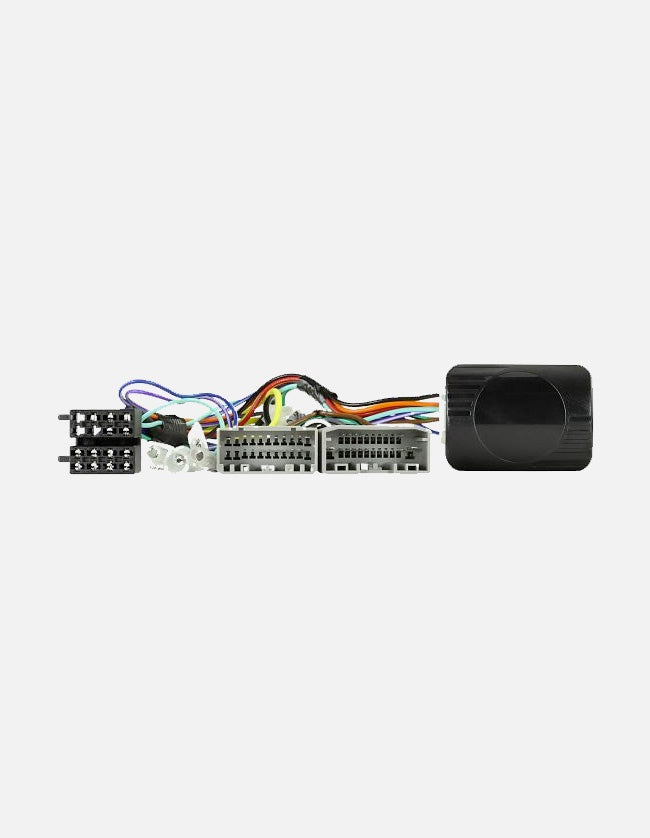

Aerpro CHCH3C Steering Wheel Control Harness

Steering Wheel Control Harness

The Aerpro CHCH3C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Chrysler, Dodge and Jeep models, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Illumination and Amp Remote. It has also been designed to retain the OEM Amplified System (if equipped) in the vehicle and includes the old 22-way and new 22-way connector systems.

Please Note:

• Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
• A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
• Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.

Important Notes:

• Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
• Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
• Includes old and new 22-way vehicle connector plugs
• CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
• Provides output feeds for reverse trigger, park brake, illumination and amp remote
• Suitable for OEM amplified and non-amplified vehicles (does not support digital fade)
• Fitted with a vehicle specific plug, no cutting of wires required
• Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
• Requires SWC patch lead to provide compatibility with the aftermarket headunit (sold separately)

Inclusions & Notes:

• Interface Type: CANBUS
• Patch Lead Type: C
• Phone Button Compatibility: Yes
• Voice Assistant Button Support: No
• Outputs:
  • Reverse Trigger: Yes (Purple/White)
  • Park Brake: Yes (Green)
  • Speed Pulse: No
  • Illumination: Yes (Orange)
  • AMP Remote: Yes (Blue)
  • Telephone Mute: No
• Other Retention:
  • OEM Amplified System: Yes (Blue/White Wire Must Be Connected.)
• Notes:
  • Aftermarket headunit must be SWC compatible.
  • SWC patch lead is also required to enable SWC (sold separately).
  • Supplied With Both 22-Way New & Old Connector Types.
  • Some cars works of rear speakers output only, need to swap rear speakers to front if there is issues with bluetooth in aftermarket headunit.
  • Does not support digital fading.

Suitable Vehicles:

• Chrysler 300C 2008-2011
• Chrysler Sebring 2007-2010
• Dodge Avenger 2007-2009
• Dodge Caliber 2009-2011
• Dodge Journey 2008-2011
• Dodge Nitro 2007-2011
• Jeep Cherokee 2008-2011 KK
• Jeep Commander 2009-2010 XK
• Jeep Compass 2010-2016 MK
• Jeep Grand Cherokee 2005-2008 WH
• Jeep Grand Cherokee 2009-2011 WH
• Jeep Grand Cherokee 2011-2013 WK
• Jeep Patriot 2009- MK
• Jeep Wrangler 2007- 2015
• Jeep Wrangler 2015-2018
