Aerpro CHKI9C Steering Wheel Control Harness
Aerpro CHKI9C Steering Wheel Control Harness

Aerpro CHKI9C Steering Wheel Control Harness

Save $31.25
SKU: CHKI9C

The Aerpro CHKI9C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Hyundai & Kia vehicles without OEM Amplified sound systems.

Price:
$93.74 $124.99

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

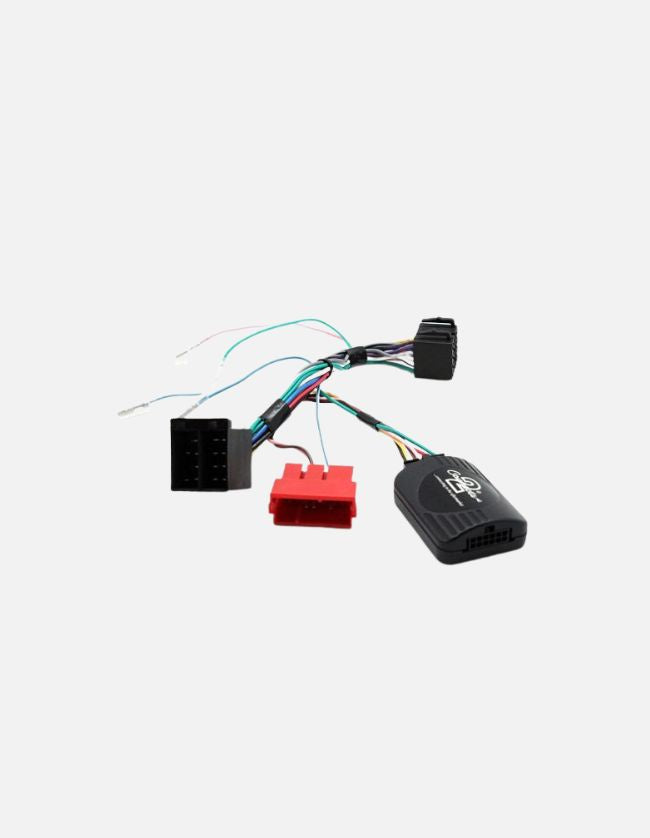

Steering Wheel Control Harness

The Aerpro CHKI9C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Hyundai & Kia vehicles without OEM Amplified sound systems, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.

Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface provides various outputs including Park Brake, Speed Pulse and Amp Remote.

Please Note:

  • Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
  • A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
  • Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
  • Not suitable for OEM amplified vehicles apart from Hyundai Santa Fe Amplified models (connect blue/white to amp remote).

Important Notes:

  • Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
  • Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
  • Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits
  • Voice Assistant Button support available with software update (please contact your Authorised Aerpro Dealer for update)
  • Not suitable for OEM amplified vehicles apart from Hyundai Santa Fe Amplified models (connect blue/white to amp remote).
  • Provides output feeds for park brake, speed pulse and amp remote
  • Fitted with a vehicle specific plug, no cutting of wires required
  • Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
  • Requires SWC patch lead to provide compatibility with the aftermarket headunit (sold separately)

Inclusions & Notes:

  • Interface Type: Analogue
  • Patch Lead Type: C
  • Phone Button Compatibility: Yes
  • Voiec Assistant Button Support: Yes
    • For Voice Assistant support the interface requires firmware version xx.3. To update the firmware please contact your Authorised Aerpro Dealer
    • If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead
    • Aftermarket headunit and phone must also support Voice Assistant feature for this feature to work
  • Outputs:
    • Reverse Trigger: No
    • Park Brake: Yes (Green)
    • Speed Pulse: Yes (Pink)
    • Illumination: No
    • AMP Remote: Yes (Blue)
  • Other Retention:
    • OEM Amplified System: No
  • Notes:
    • Aftermarket headunit must be SWC compatible.
    • SWC patch lead is also required to enable SWC (sold separately).
    • Not suitable for OEM amplified vehicles apart from Hyundai Santa Fe Amplified models (connect blue/white to amp remote).

Suitable Vehicles:

  • Hyundai i20 2010-2012
  • Hyundai i20 2012-2015 PB
  • Hyundai i30 2007-2012 FD
  • Hyundai iX35 2009-2013 LM1, LM2
  • Hyundai Santa Fe 2009-2012 CM
  • Hyundai Sonata 2008-2009 NF
  • Kia Carnival 2010-2011 VQ
  • Kia Cerato 2009-2013 TD
  • Kia Cerato 2009-2013 TD (Koup)
  • Kia Grand Carnival 2010-2014 VQ
  • Kia Sorento 2009-2012 XM
  • Kia Soul 2009-2011 AM
