More about the product

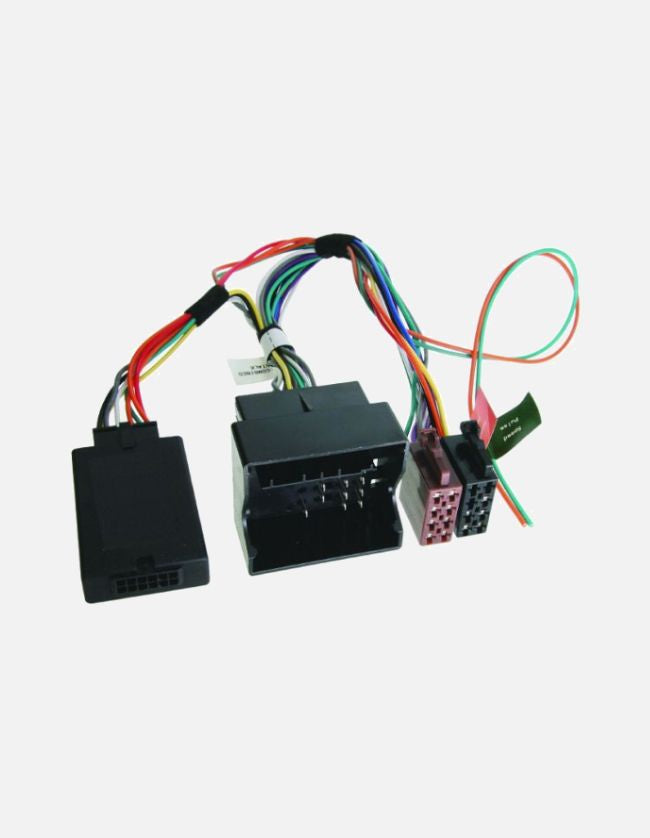

Steering Wheel Control Harness
The Aerpro CHPG5C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various Peugeot vehicles (excluding Magneti Marelli RT4, Bosch and JBL OE variants), the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required.
Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake, Speed Pulse and Illumination. The interface also allows the vehicle settings including trip computer and personalisation configuration to be accessed via the steering wheel controls.
Please Note:
- Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
- A Steering Wheel Control Patch Lead is required to be used in conjunction with this part to enable Steering Wheel Controls to function (sold separately).
- Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
- Not compatible with Magneti Marelli RT4, Bosch and JBL OE variants.
- Compatible with Blaupunkt / Siemens VDO RD4 factory units.
- Retains factory display settings which can be accessed via the steering wheel controls.
Important Notes:
- Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
- Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
- Vehicle Trip Computer and Personalisation Configuration Settings can be adjusted via the steering wheel control buttons
- CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
- Provides output feeds for reverse trigger, park brake, speed pulse and illumination
- Not compatible with Magneti Marelli RT4, Bosch and JBL OE variants
- Fitted with a vehicle specific plug, no cutting of wires required
- Recommended to be installed with an Aerpro APP9 Headunit Secondary ISO Harness & SWC Patch Lead (sold separately)
- Requires SWC patch lead to provide compatibility with the aftermarket headunit (sold separately)
Inclusions & Notes:
- Interface Type: CANBUS
- Patch Leas Type: C
- Phoen Button Compatibility : No
- Voice Assistant Button Support: No
- Outputs:
- Reverse Trigger: Yes (Purple/White)
- Park Brake: Yes (Green)
- Speed Pulse: Yes (Pink)
- Illumination: Yes (Orange)
- AMP Remote: No
- Telephone: No
- Other Retention:
- Parking Sensor Audio: No
- Trip Display Settings: Yes
Suitable Vehicles:
- Fiat Scudo 2007 - 2011
- Peugeot 207 2006-2011
- Peugeot 208 2012-
- Peugeot 3008 2010-2015
- Peugeot 307 2005-2009 T6
- Peugeot 308 2008-2014 T7
- Peugeot 407 2004-2010
- Peugeot 5008 2013-
- Peugeot Expert 2007-2016
- Peugeot Partner 2008-2014
- Peugeot RCZ 2013-
Technical details
- Brand
- Aerpro
