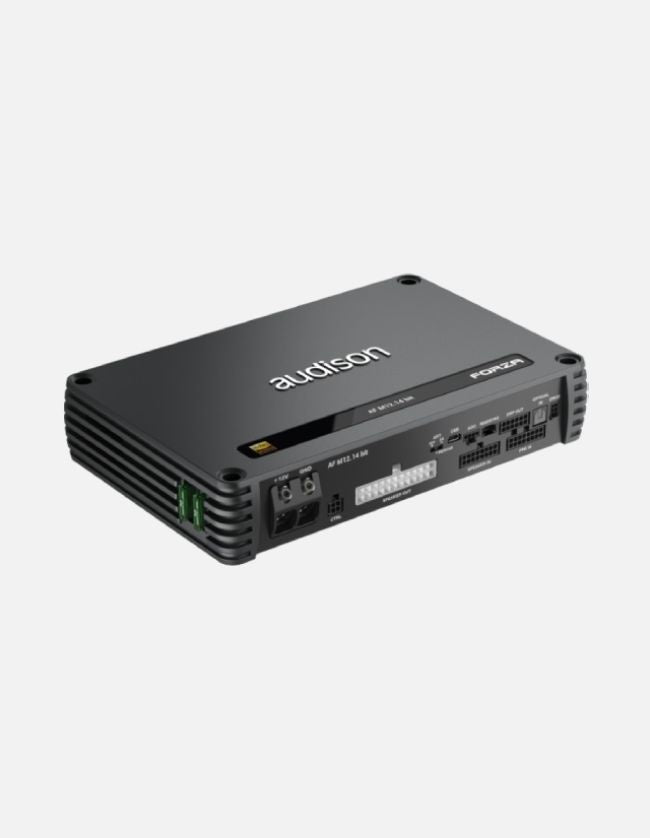

12-Channel Amplifier with 14-Channel DSP
The Audison Forza AFM12.14BIT boasts twelve high-fidelity amplified channels 60 x 12 @4Ω*, 90W x 12 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 180 x 6 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.
Features:
- Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
- Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
- Next-generation bit Drive software platform
- Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
- Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
- Up to 14 output channels (12 amplified, 2 native pre-outs) controlled by the DSP to expand the system with other amplifiers
- 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
- Extension card slot (additional 4 analog or 1 digital inputs)
- Electrical signal analysis for each input channel ensures proper integration and correction
- Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
- Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard
Specifications:
- Amplifier Tech Data
- Channels: 12
- Class: D-Class
- Efficiency : 80%
- Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage: 6.5 ÷ 17.5 VDC
- Idling current: 1.68 A
- Standby Current Draw: 1.7 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 45 A
- Remote IN: 4 ÷15 VDC (1 mA)
- Remote OUT: 6.5 ÷15 VDC (150 mA)
- ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 1.5 VDC
- Efficiency Rated Power: 80%
- Amplifier Stage
- Total Power RMS: 1080 W
- Minimum load impedance:
12Ch: 2Ω | 6Ch – (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12): 4Ω - Output Continuous Power (RMS) @14.4 VDC, 1% THD:
12 Ch @ 4Ω: 60 W x 12
12 Ch @ 2Ω: 90 W x 12
6 Ch (Bridge 1/2; 3/4; 5/6; 7/8; 9/10; 11/12) @ 4Ω: 180 W x 6 - Adjustable Crossover: Yes
Technical details
- Brand
- Audison
- Warranty
- 36-months
