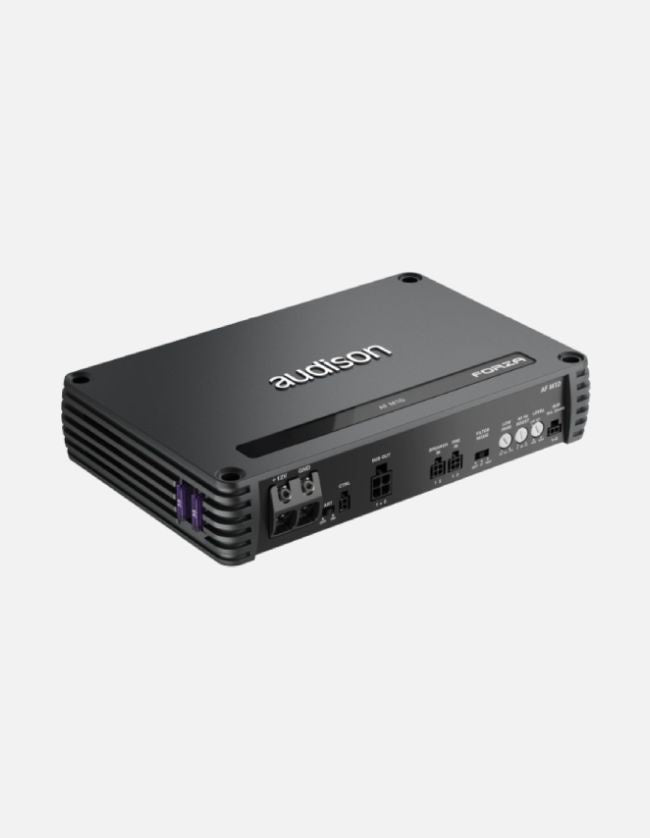

Audison Forza AFM 1D Monoblock Amplifier
Audison Forza AFM 1D Monoblock Amplifier

Audison Forza AFM 1D Monoblock Amplifier

SKU: AFM1D

The Audison Forza AFM 1D companion amplifiers are designed to add powerful amplifier channels to AF bit amplifiers. A plug-and-play Input harness is included to make the connection to AF bit amplifiers straightforward.

Price:
$999.99
In-Store Exclusive

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

Monoblock Amplifier

Audison Forza AFM 1D companion amplifiers are designed to add powerful amplifier channels to AF bit amplifiers. A plug-and-play Input harness is included to make the connection to AF bit amplifiers straightforward. AF D amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!

AF M1D is the only one in the AF D family that can be used also in standalone mode, thanks to a set of manual controls:

- adjustable (and defeatable) low-pass 4th-order crossover filter

 - 0-180° polarity/phase switch

- 45 Hz Bass Boost adjustment

Combine these functions with the ART DC turn-on from high-level Inputs, the USS speaker-input loading, and the optional VCR-S2 level knob, and this amp can be used to add subwoofers even in systems which lack an Audison AF bit amplifier!

 *Output Continuous Power (RMS) @14.4 VDC, 1% THD, All channels driven.

Features:

  • Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
  • Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
  • Hi-Res compatibility performance, with an extended audio band up to 40 kHz

Specifications:

  • Amplifier Tech Data
    • Channels: 1
    • Class: D-Class
    • Hi Level Input: Yes
    • Low Level Input: Yes
    • Digital Input: No
    • Power supply voltage / fuse: 11 ÷ 15 VDC
    • Operating power supply voltage: 6.5 ÷ 17.5 VDC
    • Idling current: 1.3 A
    • Idling current when off: 0.005 mA
    • Consumption @ 14.4 VDC, 1Ω, Max Musical Power: 65 A
    • Remote OUT: 6.5 ÷15 VDC (150 mA)
    • Remote IN: 4 ÷15 VDC (1 mA)
    • ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 1.5 VDC
  • Amplifier Stage
    • Total Power RMS: 1000 W
    • Minimum load impedance: 1 Ω
    • Output Power (RMS) @14.4 VDC, 1% THD:
      1Ch @ 4Ω: 600 W
      1Ch @ 2Ω: 1000 W
      1Ch @ 1Ω: 1200 W
    • Adjustable Crossover: Yes
