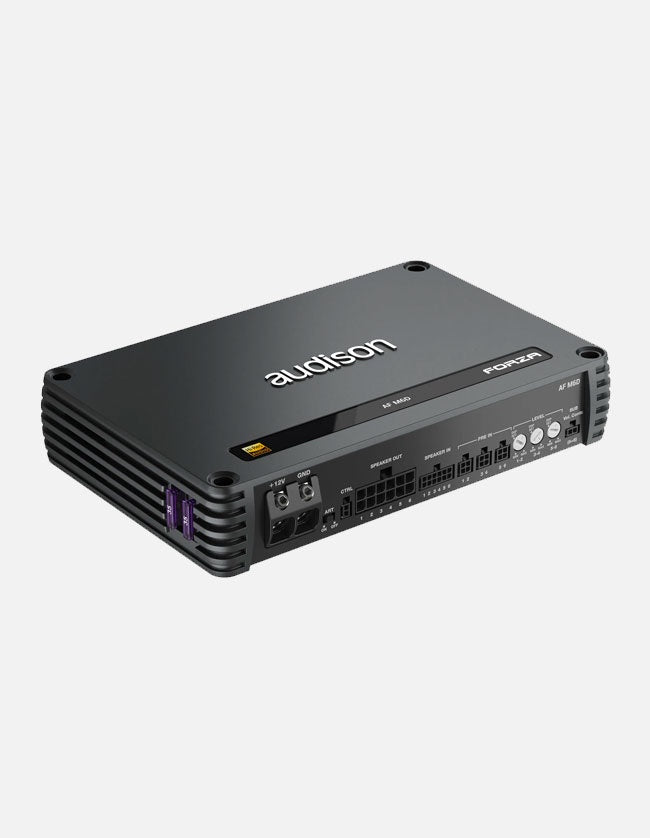

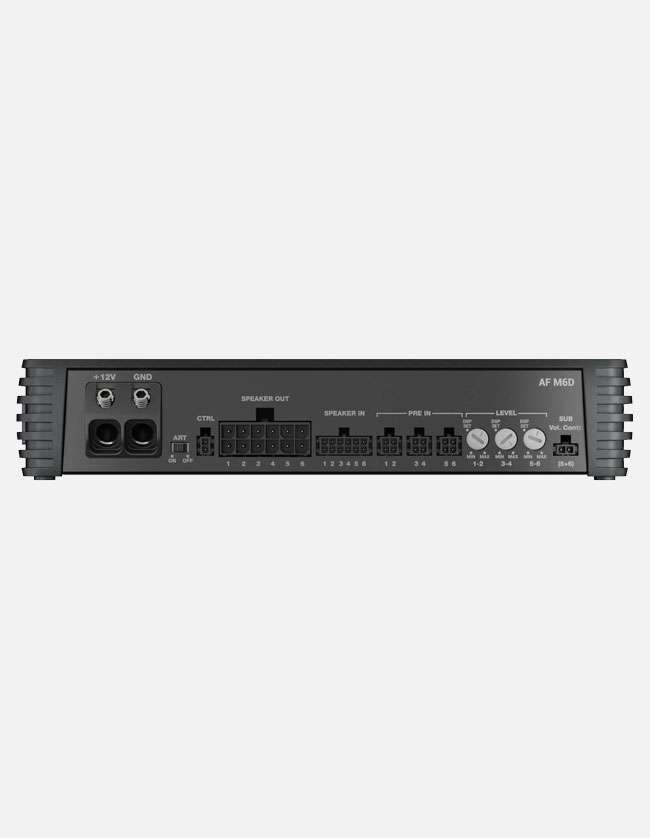

Audison Forza AFM 6D 6-Channel Amplifier
Audison Forza AFM 6D 6-Channel Amplifier
Audison Forza AFM 6D 6-Channel AmplifierAudison Forza AFM 6D 6-Channel Amplifier

Audison Forza AFM 6D 6-Channel Amplifier

SKU: AFM6D

The Audison Forza AFM 6D 6-Channel Amplifier boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!

Price:
$1,364.99
In-Store Exclusive

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

6-Channel Amplifier

AF companion amplifiers are designed to add powerful amplifier channels to AF bit processor amplifiers. A plug-and-play signal input harness is included to make connection to AF bit amplifiers straightforward. AF companion amplifiers are also perfect for use with systems controlled and managed by a standalone bit processor, such as a bit One HD Virtuoso. AF companions have a “straight wire” architecture, without analog preamp functions such as crossover filtering, and are intended for use with external processors.

The Audison Forza AFM 6D boasts six high-fidelity amplified channels 135W x 6 @4Ω*, 220W x 6 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 440W x 3 @4Ω*, guaranteeing flexible and powerful performance.

*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

Features:

  • Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
  • Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 81% of efficiency
  • Hi-Res compatibility performance, with an extended audio band up to 40 kHz
  • Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs

Specifications:

  • Amplifier Tech Data
    • Channels: 6
    • Class: D-Class
    • Efficiency: 81 %
    • Hi Level Input: Yes
    • Low Level Input:Yes
    • Digital Input: No
    • Power supply voltage / fuse: 11 ÷ 15 VDC
    • Operating power supply voltage: 6.5 ÷ 17.5 VDC
    • Idling current: 1 A
    • Idling current when off: 0.009 mA
    • Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 60 A
    • Remote OUT: 6.5 ÷15 VDC (150 mA)
    • Remote IN: 4 ÷15 VDC (1 mA)
    • ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable): 1.5 VDC
  • Amplifier Stage
    • Total Power RMS: 1320 W
    • Minimum load impedance:
      6 Ch 2Ω
      3 Ch - (Bridge) 4Ω
    • Output Power (RMS) @14.4 VDC, 1% THD:
      6 Ch @ 4Ω: 135 W x 6
      6 Ch @ 2Ω: 220 W x 6
      3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3
    • Adjustable Crossover: No
