Audison Prima AP1
Audison Prima AP1

Audison Prima AP1

SKU: AP1

The Audison Prima AP1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass.

Price:
$189.99
In-Store Exclusive

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

Tweeter

The Audison Prima AP1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass. The powerful motor is characterized by a large Neodymium magnet.

Features:

  • 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
  • An acoustic lens designed to compensate for and fine-tune the in-car frequency response anomalies in the 10 kHz 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
  • Extremely compact dedicated passive crossover APCX TW supplied with the product, optimized
    for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
  • Passive crossovers are supplied with “OEM Integration compliant”, fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.

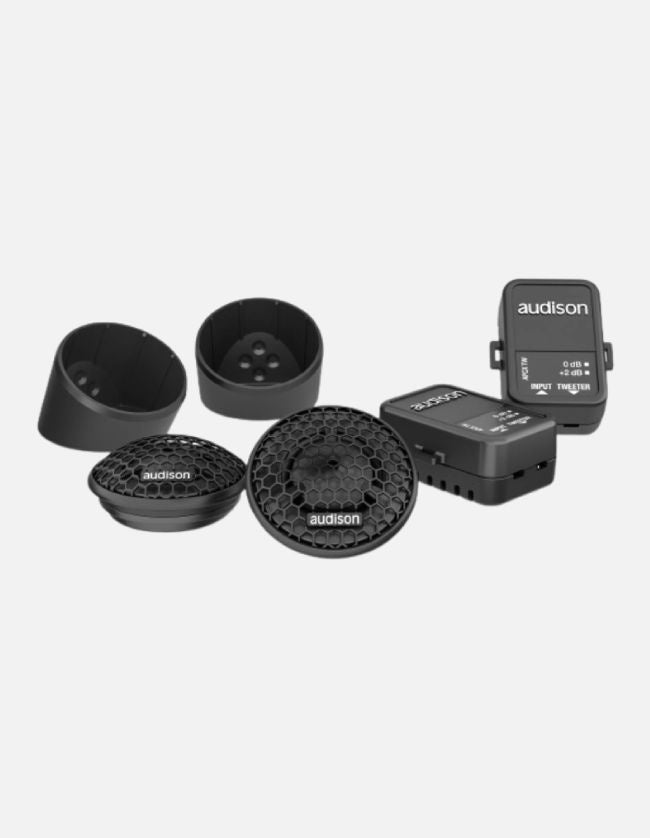

  • A wide array of mounting accessories is supplied with the product, for high fitment flexibility in OEM Integration.
  • CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound
    on a Kapton former, for better heat dissipation.
  • The Dome profile and motor are optimized with FEM (Finite Element Method) simulation
    technology.
  • Developed with the KLIPPEL suite.

Speifications:

  • Size: 26 mm
  • Power Handling - Peak: 150 W
  • Power Handling Crossover: Hi-pass filtered @ 3,5 kHz - 12 dB Oct
  • Impedance: 4 Ohm
  • Frequency Response: 2k ÷ 20k Hz
  • Magnet Material: NEODYMIUM
  • Voice Coil Ø: 20 mm
  • Woofer Qes: 2,78
  • Dome Material: TELOTON FIBRE
