Audison Prima AP1P
Audison Prima AP1P

Audison Prima AP1P

SKU: AP1P

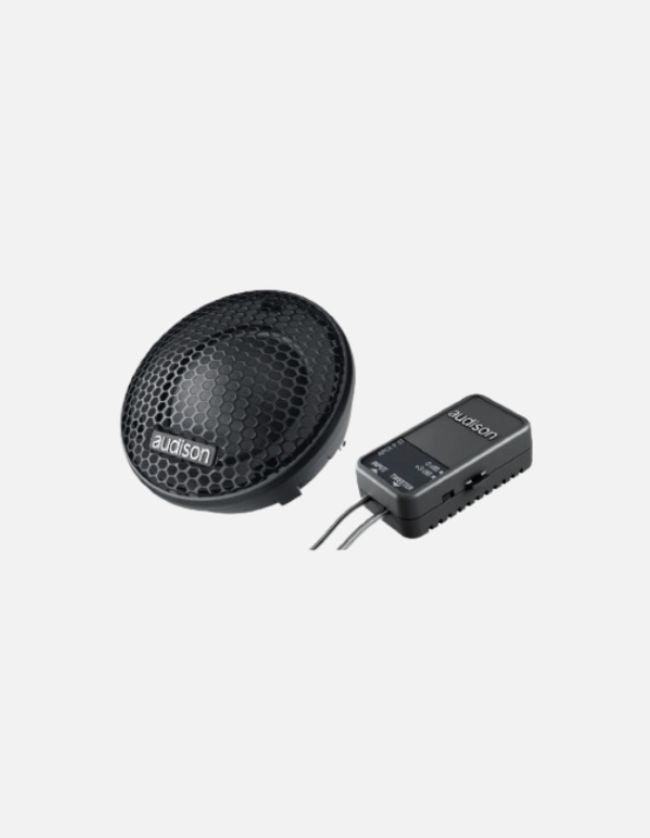

The exclusive AIF technology (Any Install Faceplate) of the Audison Prima AP1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time.

Price:
$249.99
In-Store Exclusive

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

Tweeter Component

The exclusive AIF technology (Any Install Faceplate) of the Audison Prima AP1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time. The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in. CCAW voice coil ensures an outstanding dynamic response.

AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:

  1. OEM, for an easy and correct factory placement
  2. Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations.
  3. Spoke grille: for maximum acoustic performance with a-pillar installations

Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario.

It is supplied with three mounting accessories that make the AP 1P install a breeze:

  1. Watch band;
  2. Double-angle cup;
  3. Flush Mounting Ring;
  4. Metal mounting spring

Features:

  • AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
  • Three mounting accessories are supplied to provide a solution for any type of installation.
  • Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
  • 1 in. CCAW voice coil for superior dynamic response.
  • Dome profile optimized with FEM simulations for a wide off-axis dispersion

Specifications:

  • Size: 25 mm
  • Power Handling - Peak: 150 W
  • Power Handling Crossover: Hi-pass filtered @2.5 kHz 12dB/oct
  • Impedance: 8 Ohm
  • Frequency Response: 1,2 ÷ 25k Hz
  • Crossover name: APCX P 2T
  • Crossover Type: High Pass 12 dB/oct.
  • Crossover point: 4 kHz
  • Crossover adjustment: Tweeter Level: 0 / +3 dB
  • Magnet Material: NEODYMIUM
  • Voice Coil Ø: 25 mm
  • Woofer Qes: 1.74
  • Dome Material: TELOTON FIBRE
