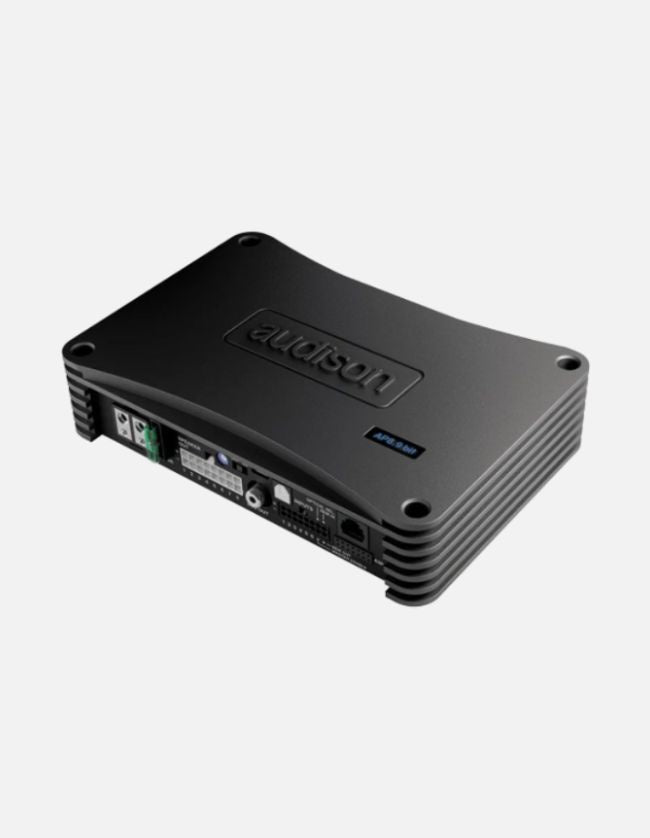

Audison Prima AP8.9BIT
Audison Prima AP8.9BIT

Audison Prima AP8.9BIT

SKU: AP8.9BIT

DSP Amplifier The Audison Prima AP8.9BIT amplifier was designed by Audison R&D Department to achieve maximum sound quality in OEM Integration applications. The powerful management software proves the ability to acquire the bit Drive presets which the Audison team fine-tuned...

Price:
$1,519.99
In-Store Exclusive

Look out for Bankstown Sound Recommendations

Whether you're shopping in store or online, we're here to guide you with honest, expert advice. Keep an eye out for our 'Bankstown Sound Recommends' callouts across product pages for real insights into the gear we trust and use ourselves, from the Bankstown Sound team.

More about the product

DSP Amplifier

The Audison Prima AP8.9BIT amplifier was designed by Audison R&D Department to achieve maximum sound quality in OEM Integration applications. The powerful management software proves the ability to acquire the bit Drive presets which the Audison team fine-tuned specifically for your car. Thanks to the innovative power supply stage, a power of 520 W total can be achieved in an extremely compact case. The non-amplifiable ninth channel can be used to drive a subwoofer via the mono AP1 D amplifier.

Features:

  • 9 channels built-in DSP
  • 8 x 65 W @ 2 ohm
  • The ninth channel can be used to drive a subwoofer via the mono AP1 D amplifier

Specifications:

  • Amplifier Tech Data
    • Channels: 8
    • Class: D-Class
    • Power supply voltage / fuse: 7.5 ÷ 15 VDC
    • Idling current: 1.5 A
    • Standby Current Draw: 0.04 mA
    • Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 30 A
    • Remote IN: 7 ÷ 15 VDC (1 mA)
    • Remote OUT: 11 ÷ 15 VDC (200 mA)
    • ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: Speakers to input - selectable
    • AST - Automatic Signal Turn on/off (Selectable): Pre-In to input - selectable
    • CPL - Continuous Power Limiting: Max continuous power - selectable
  • Amplifier Stage
    • Total Power RMS: 520 W
    • Minimum load impedance    8 Ch: 2Ω | 4 Ch - Bridge (1-2) (3-4) (5-6) (7-8): 4Ω
    • Output Continuous Power (RMS) @14.4 VDC, 1% THD:
      8 Ch @ 4Ω: 35 W x 8
      8 Ch @ 2Ω: 65 W x 8
      4 Ch - (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 130 W x 4
    • Adjustable Crossover: Yes
