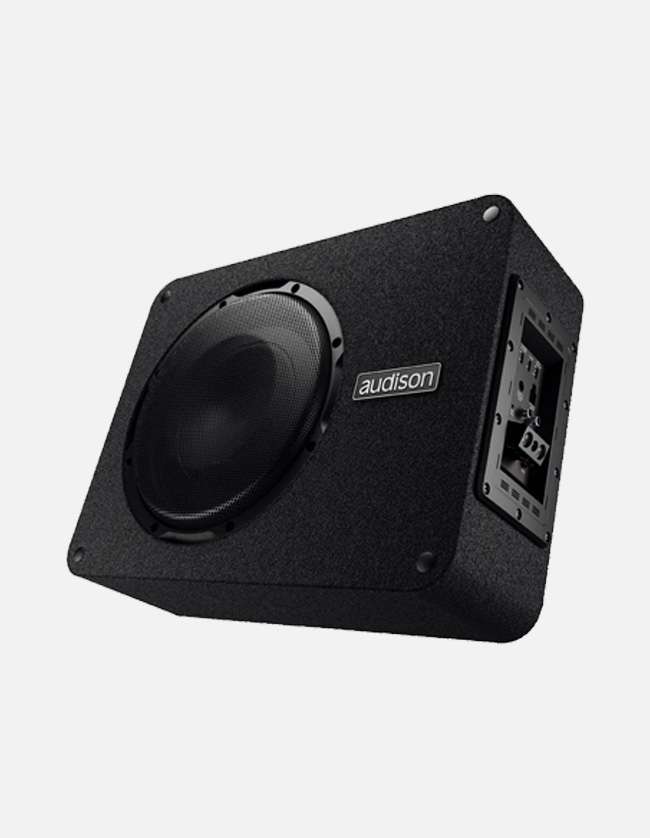

Audison Prima APBX 10 AS2 10" Active Subwoofer

10" Active Subwoofer

The Audison Prima APBX 10 AS2 active subwoofer, with the 10-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S²(2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size. The amplification module, with power outputs of 400W RMS, is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reaches the impressive 90% efficiency level, very close to the theoretical limit of the D-Class.

Features:

• Integrated 400 W RMS 0.16 D-Class amplifier featuring he-li technology
  (high efficiency / low impedance) without switching power supply, for a
  performance next to ideal.
• Input stage DBT (Dynamic Bass Tracking) technology allows 100% use of the He-Li (High-Efficiency Low Impedance) amplifier power and to enjoy a tense and dynamic bass even at very high listening volumes.

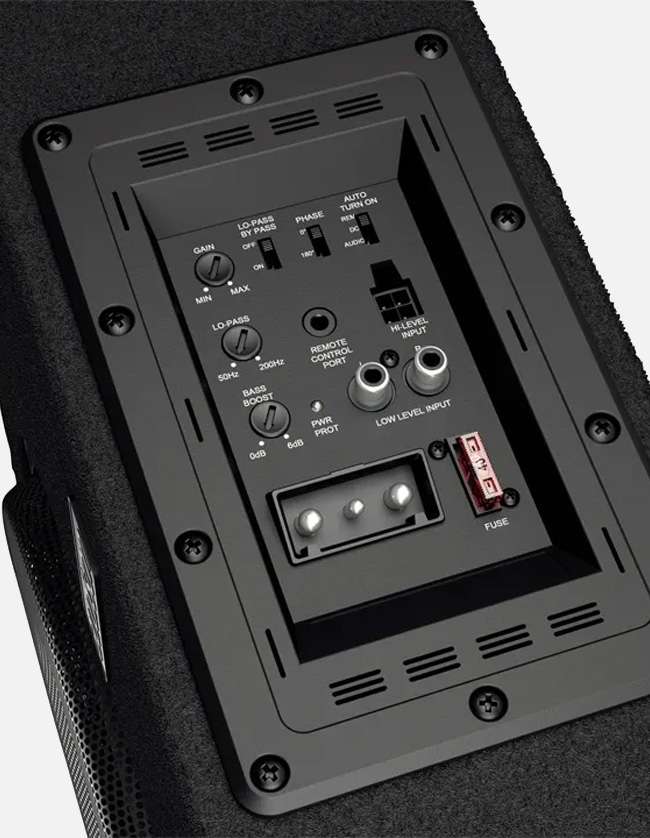

• Butterworth low-pass filter at 12dB/Oct. with variable cutting frequency (50-300 Hz), phase control (0-180°), and adjustable bass-boost 0÷6 db @ 45Hz.
• Defeatable filter to use the sub dedicated output of a bit or AP bit processor.
• High-level audio input on multi-pin connector for maximum OEM
  integration and low level on RCA for aftermarket sources.
• ART turn-on function (Automatic Remote Turn-On) is selectable among Remote-in, Hi-level, and Audio signals.
• Box with ultra-low profile (6.22 in./ 158 mm) in air suspension, designed to take full advantage of the performance of the 10-inch APS 10 DL
  high-impedance driver.
• The SSP (Sub Smart Plug) terminal block is provided with a Plug&Play
  connector to be able to disconnect the box easily and safely.

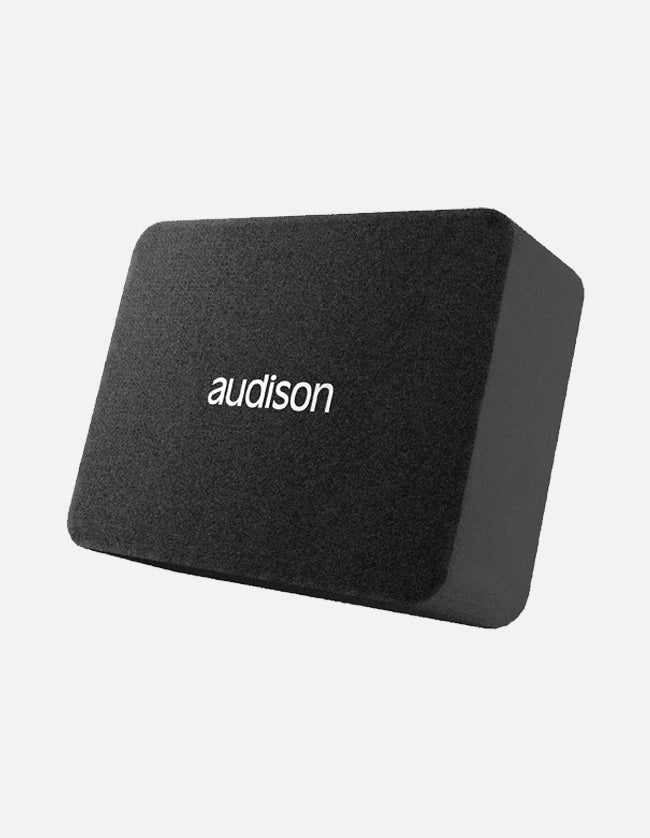

• The 2S² (2 Sides / 2 Sounds) design provides the ability to select between Down-Firing positioning to increase the low-frequency extension and Up-Firing installation to obtain more punch and definition.
• Down-firing leveling feet with Velcro inserts included for a secure grip with the carpet, ensuring extreme ease of removal.
• Rounded corners allow easy placement in the trunk and act as a
  reinforcement to reduce enclosure resonances.
• The exclusive design of the cone, dust-cap, and basket geometry to achieve a wide linear excursion (9 mm in one direction), keeping the depth required for the assembly to a minimum.
• HRC AP remote control included.
• A sturdy metal grille is included, for the total protection of the subwoofer driver.

Specifications:

• Size: 250 mm
• Power Handling - Peak: 800 W
• Power Handling - Continuous: 400 W
• Magnet Material: HIGH DENSITY FLUX FERRITE
• Cone Material: WATER REPELLENT PRESSED PAPER
