More about the product

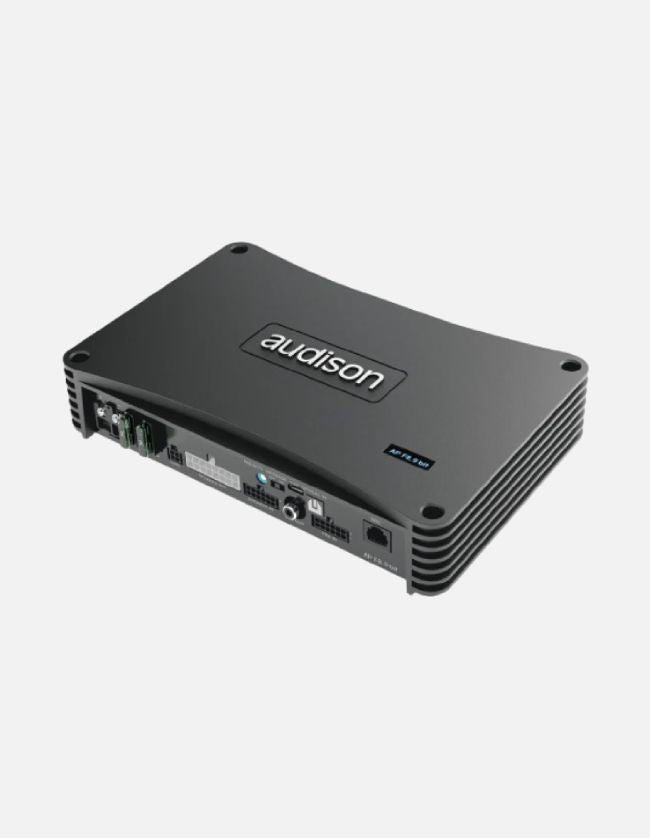

8-Channel Amplifier with 9-Channel DSP
The new Audison Prima AP F8.9 BIT is ideal for the most demanding integration projects, where high power is required along with the flexibility of the nine-channel DSP. The word Forza, meaning Power in Italian, well describes the 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4 ohms), with optimal power-to-size ratio. The integrated processor is equipped with dedicated software and 7 pre-configured presets for a Plug & Sound experience.
Thanks to the built-in Audison USS technology (Universal Speakers Simulator), AP F8.9 bit can also be correctly connected to head units with a speaker load detection function that monitors the presence of a low-impedance load to enable the audio outputs.
Features:
- 8 x 85 W RMS and 4 x 260 in bridge mode (RMS @ 4 ohms)
- Built-in 9 channels processor with PC software
- 7 pre-configured presets for a Plug & Sound experience
- built-in Audison USS technology (Universal Speakers Simulator)
Specifications:
- Amplifier Tech Data
- Channels: 8
- Class: D-Class
- Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage: 6.5V ÷17V
- Idling current: 1.6 A
- Switched off without DRC MP: 1.7 mA
- Switched off with DRC MP: 5 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 55 A
- Remote IN: 6 ÷ 15 VDC (1 mA)
- Remote OUT: 4 ÷ 15 VDC (150 mA)
- ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers: 2 ÷ 7 VDC
- AST - Automatic Signal Turn on/off (Selectable): Speaker-In
- Amplifier Stage
- Total Power RMS: 1040 W
- Minimum load impedance 8Ch: 2Ω | 4Ch - (Bridge 1/2; 3/4; 5/6; 7/8) : 4Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD
8Ch @ 4Ω 85 W x 8
8Ch @ 2Ω 130 W x 8
4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω 260 W x 4
2Ch @ 4Ω 100 W x 2
2Ch @ 2Ω 150 W x 2
1Ch (Bridge) @ 4Ω 300 W x 1 - Output Impulsive Power @14.4 VDC, 1% THD
8Ch @ 4Ω 100 W x 8
8Ch @ 2Ω 150 W x 8
4Ch (Bridge) @ 4Ω 300 W x 4 - Adjustable Crossover: Yes
