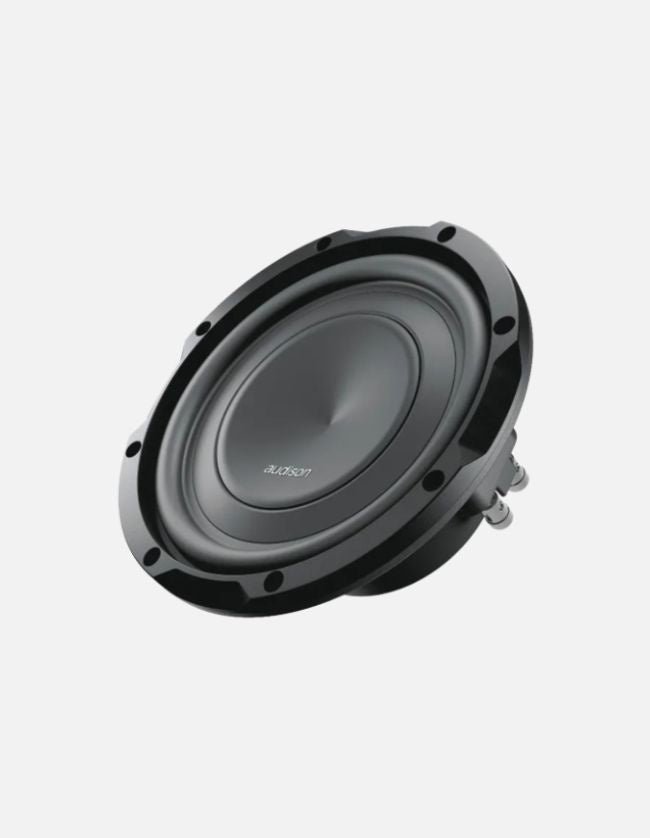

Audison Prima APS 8 D 8" Subwoofer

8" Subwoofer

The Audison Prima APS 8 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 lt. to 8.5 lt. It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output.

However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

Features:

• Ultra-low profile (3.11 in. / 79 mm) for maximum installation flexibility.
• Designed to deliver maximum performance in a sealed enclosure
  starting from 7.5 lt.
• Special designed cone-dustcap-basket geometry which guarantees a
  long linear excursion capability (almost 9 mm, one-way) while keeping
  the mounting depth to minimum.
• Air vents on the basket underneath the spider, eliminating the need for
  the central pole vent allowing mounting close to rear wall of enclosure.
• Massive motor assembly optimized with FEM (Finite Element Modeling)
  for perfect control under high power, high excursion conditions.
• Water-repellent pressed paper 8 in. cone featuring a profile developed
  with simulation and optimized with the Klippel Scan Vibrometer.
• Dual voice coil design specifically developed to be combined with either
  AP8.9 bit (2 CH + 2 CH bridged), AP5.9 bit (Sub CH) or AP4.9 bit/AP4 D
  (2 CH bridged) amplifiers.
• Steel mesh grille and plastic gasket included.

Specifications:

• Size: 200 mm
• Power Handling - Peak: 500 W
• Power Handling - Continuous: 250 W
• Impedance: 2 Ohm
• Magnet Material: HIGH DENSITY FLUX FERRITE
• Woofer Qes: 0,46
• Cone Material: WATER REPELLENT PRESSED PAPER
• Xmax: 8.8 mm
• Xmech: 16.5 mm
