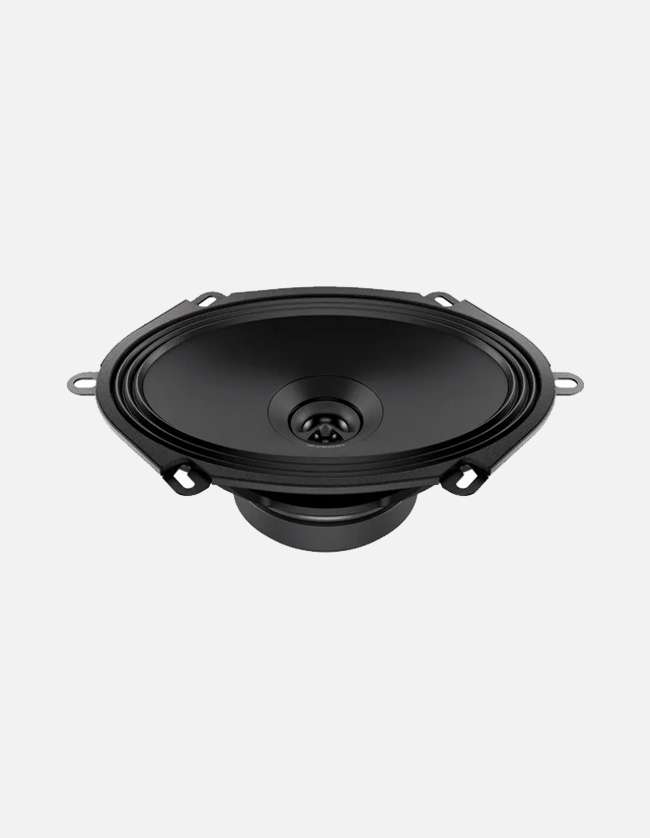

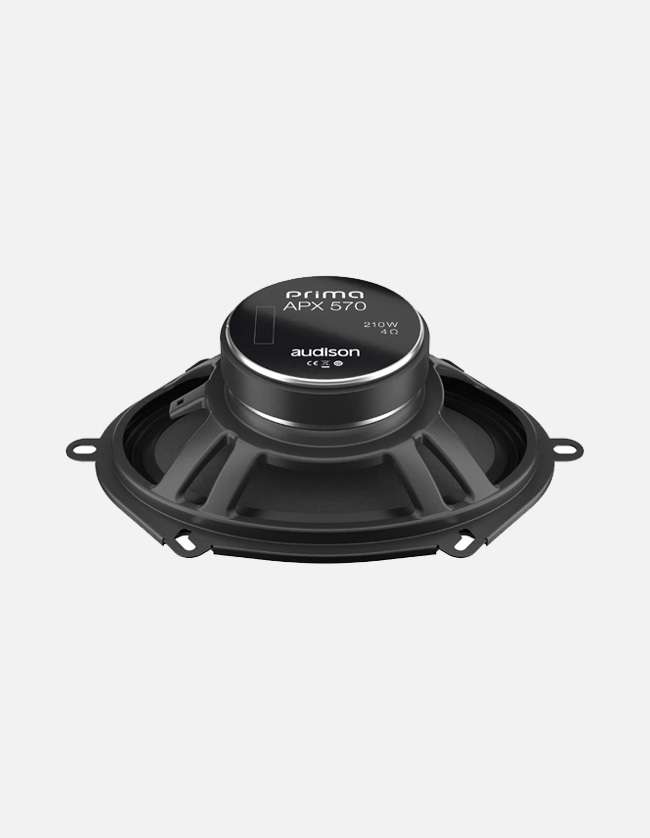

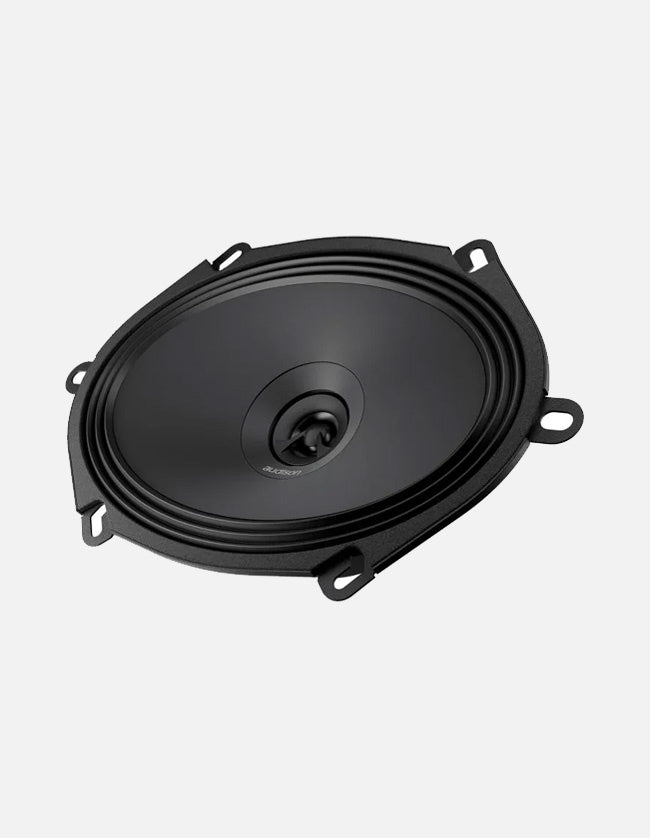

Audison Prima APX 570 5x7" Coaxial Speakers
Audison Prima APX 570 5x7" Coaxial Speakers
Audison Prima APX 570 5x7" Coaxial Speakers
Audison Prima APX 570 5x7" Coaxial SpeakersAudison Prima APX 570 5x7" Coaxial SpeakersAudison Prima APX 570 5x7" Coaxial Speakers

Audison Prima APX 570 5x7" Coaxial Speakers

SKU: APX570

The Audison Prima APX 570 5×7″ Coaxial Speakers systems is ideal for car models with doors equipped to house elliptical speakers featuring 5×7 in. woofers and AP 1 tweeter with dedicated crossovers APCX TW 570. The crossovers are ultra-compact to facilitate their installation, and include an attenuation of the tweeter output level for outstanding fine-tuning.

Price:
$259.99
In-Store Exclusive

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

5x7" Coaxial Speakers

The Audison Prima APX 570 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter. The 5x7" cones surround features an exclusive shallow Triple Wave profile, for maximum excursion linearity.

Features:

  • Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
  • Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
  • 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
  • Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
  • TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
  • Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Specifications:

  • Elliptical Size: 5 x 7
  • Woofer Size: 570 mm
  • Tweeter Size: 24 mm
  • Woofer Power Handling - Peak: 210 W
  • Woofer Power Handling - Continuous: 70 W
  • Woofer Impedance: 4 Ohm
  • Woofer Frequency Response: 60 ÷ 23k
  • Woofer Magnet Size: 85 x 40 x 15
  • Woofer Voice Coil Diameter: 32 mm
  • Tweeter Voice Coil Diameter: 15 mm
  • Xmax: 2 mm
