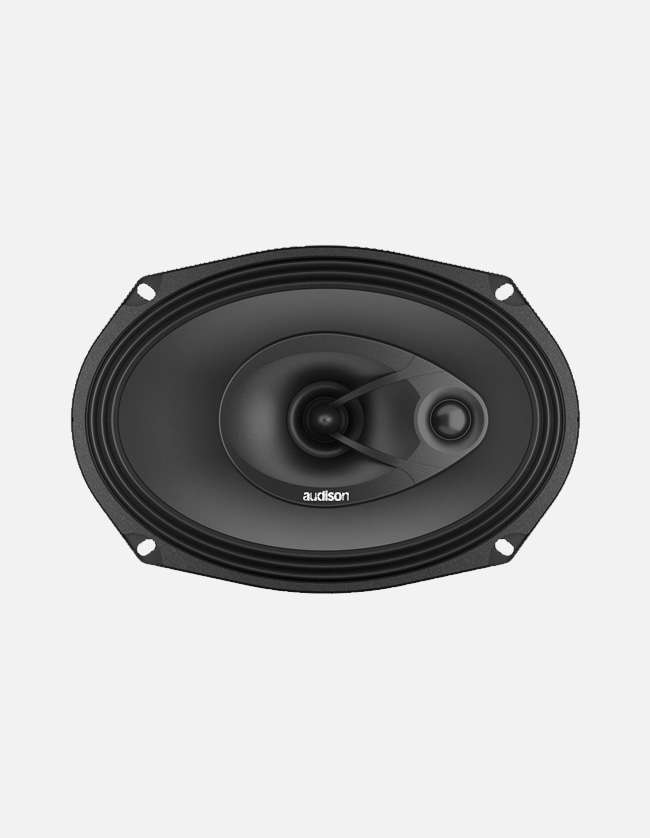

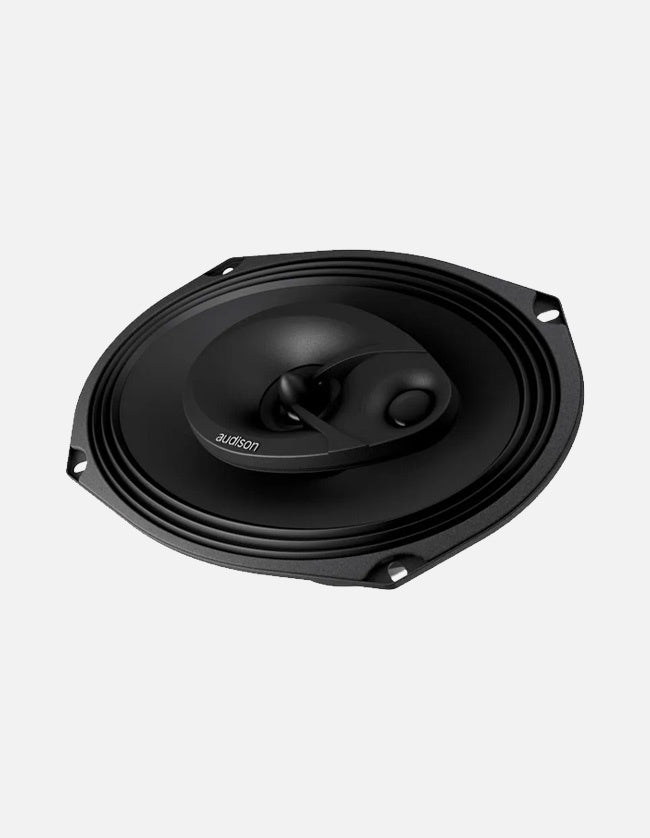

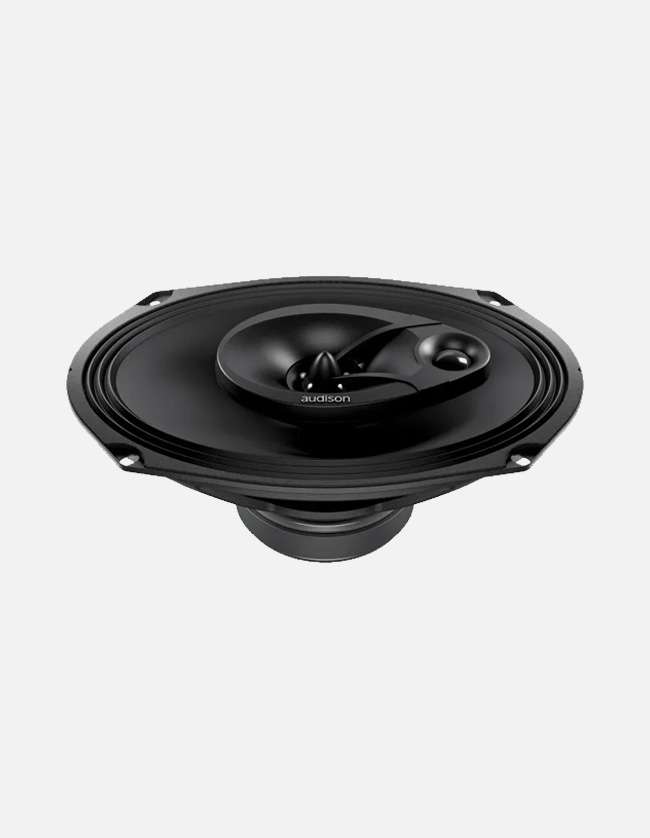

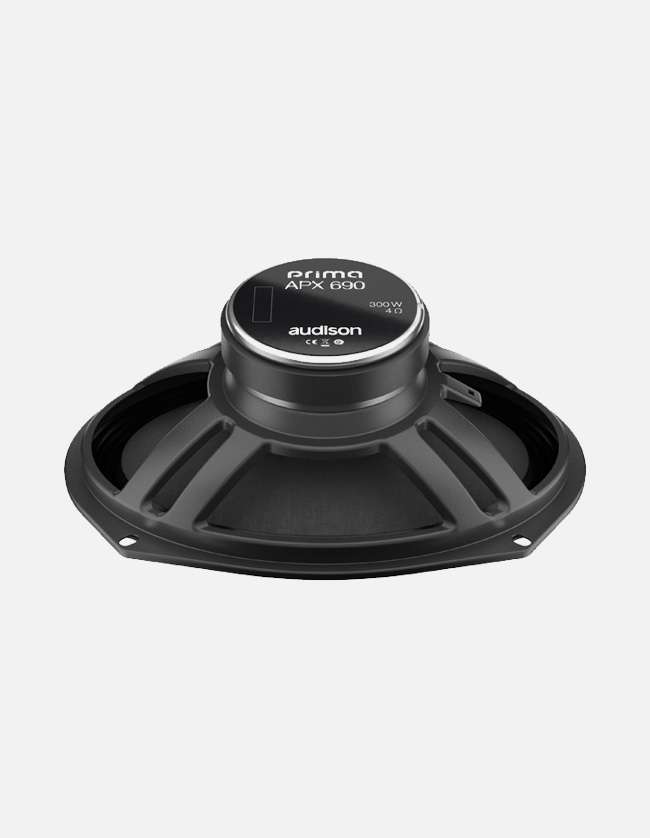

Audison Prima APX 690 6x9" Speakers
Audison Prima APX 690 6x9" Speakers
Audison Prima APX 690 6x9" Speakers
Audison Prima APX 690 6x9" Speakers
Audison Prima APX 690 6x9" Speakers
Audison Prima APX 690 6x9" SpeakersAudison Prima APX 690 6x9" SpeakersAudison Prima APX 690 6x9" SpeakersAudison Prima APX 690 6x9" SpeakersAudison Prima APX 690 6x9" Speakers

Audison Prima APX 690 6x9" Speakers

SKU: APX690

The Audison Prima APX 690 6×9″ Speakers features an exclusive 40 mm horn loading dome tweeter that contributes to maximize efficiency up to 96dB SPL and an acoustics lens specifically designed and applied to the tweeter to increase dispersion in the high frequency range.

Price:
$259.99
In-Store Exclusive

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

6x9" Speakers

The Audison Prima APX 690 features an exclusive 40 mm horn loading dome tweeter that contributes to maximize efficiency up to 96dB SPL and an acoustics lens specifically designed and applied to the tweeter to increase dispersion in the high frequency range.To strengthen the emission of very high frequency ranges otherwise affected by off-axis positioning compared to the listening point, the APX 690 featuring a supertweeter.

Features:

  • Horn Loaded Tweeter: 40 mm horn loaded dome tweeter contributing to its incredible efficiency of up to 96 dB SPL.
  • Acoustics lens applied to the tweeter, specifically designed to increase dispersion in the high frequency range.
  • PEI (Polyethylene injected) super tweeter employed to strengthen emission of very high frequency ranges otherwise affected by off-axis positioning common to rear deck installations.
  • Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
  • Pure copper mobile voice coil, wound on Kapton former, for better thermal and mechanical capacity.
  • TPU (thermoplastic polyurethane) sphere with unique “triple wave” profile for maximum linearity of excursion.
  • Polycotton spider material ensuring reliable performance and linear response to musical transients.
  • Large motor assembly, optimised with FEM (Finite Element Method) technology, for stable control and linear excursion.
  • Low carbon content plates for maximum magnetic permeability and high heat dissipation.
  • Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
  • High current fast-on terminal with temperature resistant plastic cover, protecting it against accidental short circuits.
  • Developed with the KLIPPEL suite.

Specifications:

  • Elliptical Size: 6 x 9
  • Woofer Size: 690 mm
  • Tweeter Size: 40 mm
  • Super Tweeter Size: 15
  • Woofer Power Handling - Peak: 300 W
  • Woofer Power Handling - Continuous: 100 W
  • Woofer Impedance: 4 Ohm
  • Woofer Frequency Response: 40 - 23k
  • Woofer Magnet Size: 90 x 32 x 15
  • Woofer Voice Coil Diameter: 25 mm
  • Tweeter Voice Coil Diameter: 20 mm
  • Xmax: 3.5 mm
