More about the product

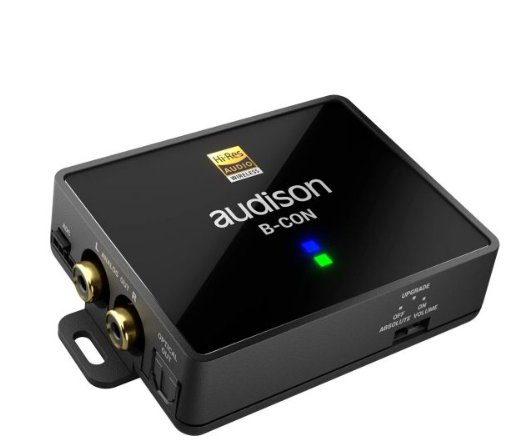

Experience true high-resolution wireless audio with B-CON II, the next-generation Audison Bluetooth® receiver featuring LDAC streaming up to 24-bit/96 kHz. Its refined design, modern USB-C connectivity, and fully wireless updates via the B-CON Go App ensure effortless control without needing to connect to a DSP processor. Engineered for seamless system integration, B-CON II delivers outstanding sound quality and reliable performance in any car audio environment.
Specification
POWER SUPPLY
Voltage: 5 – 24 VDC
Idling current: 40 mA
Remote IN: 5 – 24 VDC (3.5 mA)
BLUETOOTH SPECIFICATIONS
Type: Bluetooth 5.0 + EDR
Codec: LDAC, AAC, SBC
Profile: Bluetooth A2DP 1.3, AVRCP 1.6
Max Paired Devices: 1
Max Distance: 10m
INPUTS / OUTPUTS / CONTROLS
Digital Input: Optical S/PDIF (Max 24 bit/192 kHz)
Digital Output: Optical S/PDIF (Max 24 bit/96 kHz)
Analog Output: RCA Stereo (2 Vrms)
Aux Sel Wire: Yes (active +12V with streaming ON)
Master En Wire: Yes (active +12V with streaming OFF)
ADC Port: Yes
Mode Switch: Absolute Volume Upgrade Switch (User selectable)
Status LEDs: Yes
ANALOG OUTPUT PERFORMANCE
Bandwidth (Max): 5 – 48 kHz
Output Level: 2 VRMS
Distortion – THD @ 1 kHz, 1 VRMS: 0.003%
S/N RATIO (A weighted): 107 dBA
GENERAL REQUIREMENTS & CERTIFICATIONS
Operating Temp Range: -20°C – +85°C
Certifications: CE-RED, FCC, ISED, SRRC, RCM, MIC, WPC, ROHS, REACH 2.0
Features
Hi-Res Audio Wireless Certification: certified by the Japan Audio Society (JAS) for high-resolution wireless audio.
LDAC Codec Support: streams audio up to 24-bit/96 kHz for superior sound quality compared to standard Bluetooth.
AAC and SBC Compatibility: supports AAC for iOS devices and SBC for broad device compatibility.
Analog and Digital Outputs: offers RCA analog outputs and Toslink optical digital output for flexible system integration.
Digital Optical Input with Pass-Through: allows connection of other digital sources with up to 192 kHz / 24-bit resolution.
USB-C Port: modern USB-C connection for supply in home applications and firmware updates via laptop.
Absolute Volume Control: enables the DSP volume control from a smartphone to keep the best audio quality.
Hands-Free Call Management: automatically switches to the car’s factory Bluetooth during calls and resumes music playback afterward.
Direct Firmware and Bluetooth Updates: update directly via the B-CON Go app without requireing a connection to Audison dsp processors.
Flexible Power Supply: operates on 6–24 VDC (automotive) or 5V via USB-C (home use).
Compact Design: small size and low weight make installation easy in a wide range of setups.
