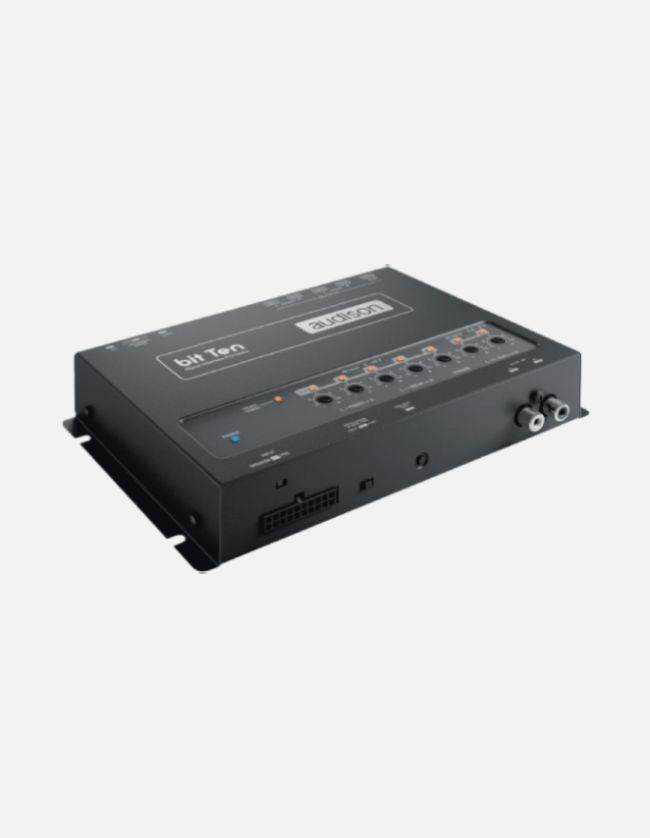

Audison bit BIT TEN 5-Channel Digital Processor
Audison bit BIT TEN 5-Channel Digital Processor

Audison bit BIT TEN 5-Channel Digital Processor

SKU: BITTEN

The Audison bit BIT TEN is a multi-function digital processor featuring analog input, capable of transforming ordinary OEM or after-market system into a high-performance system.

Price:
$629.99
In-Store Exclusive

Frequently Asked Questions

In addition to shipping all over Australia with Australia Post, we also offer in-store pickup from our Bankstown, NSW store. From the checkout, you're able to select between shipping methods, regular, Express, or In-Store Pickup. For more information on Bankstown Sound shipping, please read more here.
We offer installation services for everything we sell. Our installations come with a lifetime warranty and are performed at our Bankstown, NSW workshop by Car Audio installation specialists with over 25+ years experience. Please contact us for an installation quote if you're wanting us to do it for you.
A back order occurs when an item is temporarily out of stock but can still be ordered. This means we’ll reserve the item for you and ship it as soon as it’s available again. By placing a back order, you’ll be first in line to receive the product once it’s restocked, ensuring you don’t miss out.

More about the product

5-Channel Digital Processor

Audison bit BIT TEN is a multi-function digital processor featuring analog input, capable of transforming ordinary OEM or after-market system into a high-performance system.Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten is controlled by a software especially developed for signal treatment according to the vehicle acoustic peculiarities. Setting the parameters of each input single channel, setting the delays according to the listening position, adjusting crossovers and equalizers for each of the 5 output channels; all of these operations can be managed by the PC.USS “ Universal Speakers SimulatorThanks to the integration of the USS technology, the bit Ten can also be connected to headunits featuring the speaker load detection circuit that would otherwise mute the audio signal output.

During the installation phase, after converting the analog signal into digital, bit Ten automatically reconstructs a digital full-bandwidth stereo signal; de-equalizes the frequency response and, if necessary, reconstructs the central and subwoofer channels.The user can configure the output mode of each channel relative to the installed system.

Specifications:

  • Amplifier Tech Data
    • Nominal power supply voltage / Fuse: 11 ÷ 15 VDC
    • Channels: 5
    • Sample Rate: 24 bit / 48 kHz
    • Hi Level Inputs: 4
    • Low Level Inputs: 4
    • Digital Inputs: 0
    • Processing Method: Fixed point
    • Idling current: 0.4 A
    • Switched off without DRC MP: 2.5 mA
    • Switched off with DRC MP: 4 mA
    • Remote IN: 7 ÷ 15 VDC (1.3 mA)
    • Remote OUT: 12 VDC (130 mA)
  • Signal Stage
    • Distortion - THD @ 1 kHz, 1 VRMS Output:  0.005 %
    • Bandwidth @ -3 dB: 10 ÷ 22k Hz
    • S/N ratio @ A weighted, 4 V Output, 2 V MASTER input: 96 dBA
    • S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input: 95 dBA
    • Channel Separation @ 1 kHz: 85 dB
    • Input sensitivity AUX: 0.6 ÷ 5 V RMS
    • Input impedance Pre In: 15 kΩ
    • Input impedance Speaker In / AUX : 2,2 kΩ
    • Max Output Level 0.1% THD: 4 V RMS
